AuSn Preform vs Pre-Deposited Submount: Decision Tree

Q: When should I use pre-deposited AuSn instead of a preform?

For sub-mm laser pads, prototype through mid-volume builds, void specs at or below 5% (often below 2% for telecom), and lines without a dedicated preform cell. Pre-deposited removes pick-place variance and keeps solder fresh until reflow.

Q: When are AuSn preforms still justified?

Pads above ~1.5 mm, very high volume with amortized tooling, mature thermal-compression or flip-chip equipment, and programs where die rework or multi-die sequential attach outweighs void risk.

Q: Where is the peer-reviewed depth?

Expand the technical review — AuSn phase behavior, void and Kirkendall mechanisms, pad-finish effects, thermal cycling, and process economics with DOI links.

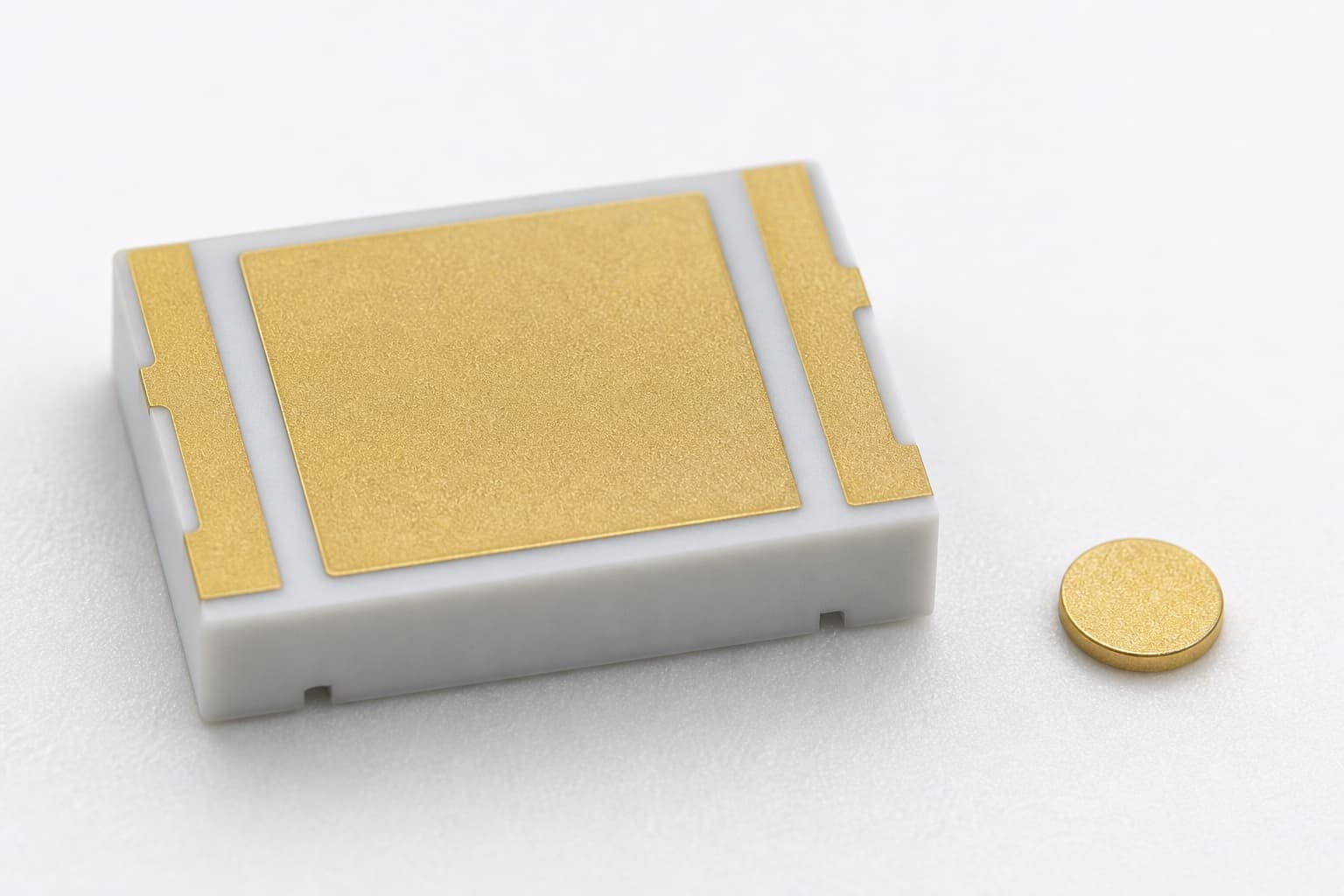

When to use solder preforms vs manufacturer pre-deposited AuSn 80/20 on ALN/SiC submounts — pad size, volume, void spec, and line capability, plus an expandable literature review on IMC, voiding, and reliability.

Two ways to get AuSn on the pad

Au/Sn 80/20 (~280°C eutectic) is the default high-temperature attach for hermetic laser modules. You either place a discrete solder preform (stamped foil, typically 20–50 µm thick) immediately before die attach, or buy a submount with pre-deposited AuSn (electroplated or PVD, often 3–5 µm on the die pad only) from the ceramic vendor.

The alloy is the same; the manufacturing path is not. Preforms add handling, oxidation, and placement variance. Pre-deposited solder is already aligned to your pad geometry and stays under controlled storage until reflow. For edge-emitting lasers, bondline voids and die tilt are wavelength problems — not just yield problems.

Companions: AuSn pre-deposited submounts · void inspection · ALN submount · SiC submount.

Decision tree (laser packaging)

Pad width < 1 mm or pad area < ~1 mm² (edge emitter)? → Pre-deposited — preform placement error and rollover dominate scrap.
Prototype or < ~5k modules/month without a qualified preform cell? → Pre-deposited — no die-specific preform tooling or reel logistics.
Void spec ≤ 2% (telecom / coherent) or stripe must stay void-free? → Pre-deposited + N₂ or vacuum peak — see void guide bands.
Void spec 2–5% commercial CW? → Pre-deposited preferred; preforms viable only with disciplined reflow and incoming X-ray.
Pad > ~1.5 mm, > ~15–20k modules/month, mature pick-place and compression/reflow? → Evaluate preform $/joint — include scrap from misalignment.
Rework / die replacement on same submount is mandatory? → Preforms or fresh preform + localized reflow — pre-deposited submounts are usually consume-once.
Indium or flux attach process? → Not this tree — see indium/epoxy attach draft.

Default for new laser programs: pre-deposited unless volume, pad size, and rework requirements clearly favor preforms.

Side-by-side (typical laser lines)

Factor	Pre-deposited AuSn	Solder preform
Pad area sweet spot	< 1 mm² to ~2 mm²	~1.5 mm² and larger
Void area (optimized)	Often < 2%	Often 5–15% without vacuum/N₂
Handling steps	Die place + reflow	Preform place + die + reflow
Solder freshness	Sealed submount to reflow	Reel exposure; oxidation risk
New die size	Pad artwork change	New preform punch / MOQ
Rework	Difficult — new submount	Replace preform feasible
Volume economics	Strong < 15k/mo	Crossover ~15–25k/mo class

Void spec drives the call

Voids are thermal resistors at the junction. A void under the ridge can shift DFB wavelength by several °C of effective T_j margin. Pre-deposited pads wet from the ceramic up — no trapped air at a preform perimeter. Production programs targeting < 2% total void area by X-ray overwhelmingly standardize on pre-deposited submounts; preforms remain common in cost-driven bands where 5–10% is still engineering-reviewed.

Void target	Recommendation
≤ 2% telecom / DWDM	Pre-deposited + controlled reflow
2–5% datacom / industrial	Pre-deposited preferred; preform with vacuum
> 5% prototype	Either; tighten before production

Process levers (both paths)

Atmosphere: N₂ or forming gas at peak; vacuum assist when spec < 3% void.
Pad finish: Ti/Pt/Au or Ti/Ni/Au under AuSn — ENIG/ENEPIG quality affects Ni-Sn voiding at the UBM.
Profile: Short time above 280°C liquidus; avoid excessive IMC growth on repeated reflow.
Placement: Pick-place force during peak for preforms; pre-deposited removes preform alignment DOE.

FerraLink ships selectively pre-deposited Au/Sn 80/20 on DPC AlN and SiC — benchmark void maps on evaluation samples before locking attach qualification.

What you can decide here

Whether your pad and volume fit the pre-deposited default or a preform crossover.
How void % in your spec maps to material choice (not just reflow tuning alone).
That rework flexibility is the main reason to keep preforms in mature high-volume lines.

What still needs your numbers

Pad L×W, die footprint, and target standoff / bondline (µm).
Monthly volume, existing preform cell, and $/joint including scrap.
X-ray void map vs T_j or λ on golden units for your reflow ID.

Choosing attach for a new DFB or pump program? Expand the technical review — AuSn IMC growth, hydrogen and Kirkendall voids, pad-finish literature, thermal cycling, and FerraLink pre-deposition scope.

For experienced packaging engineers

Literature-backed AuSn preform vs pre-deposited review

Peer-reviewed sources, interface data, and packaged-device literature — written by FerraLink materials engineering to support submount and attach decisions, not as neutral survey copy.

+22 min

Expand literature-backed review ↓

FerraLink positions this review for laser module and photonics attach engineers choosing AuSn on ALN/SiC submounts. We bias toward pre-deposited Au/Sn on DPC tiles where void and pad-size constraints match telecom and industrial emitter programs — while documenting when preforms remain economically rational.

1. AuSn 80/20 fundamentals

The Au-Sn eutectic near 80 wt% Au / 20 wt% Sn melts at ~280°C and is widely used for hermetic, high-temperature die attach^{[Heran 2019]} ^{[Ma 2024]}. Off-eutectic compositions form mixed (Au,Ni)Sn and brittle IMC phases that change shear and fatigue response^{[Rautiainen 2018]}. CALPHAD work on related Au-Sb-Sn systems supports composition control in advanced lead-free stacks^{[Ge 2023]}.

During reflow, Au dissolves into Sn and AuSn₄-type IMCs grow with kinetics set by temperature, time above liquidus, and pad metallization^{[Darayen 2017]} ^{[Holcomb 2001]}. For laser modules, the practical limit is keeping IMC thickness and void fraction low enough that R_th,jc and beam pointing stay inside spec.

2. Pre-deposited pads: manufacturing control

Pre-deposited AuSn is applied on the die pad during submount metallization — electroplating or PVD with selective masking so wire-bond and optical features stay bare Au^{[Wang 2023]} ^{[Zhang 2024]}. Thickness control (±0.5 µm class on plating lines) sets bondline volume more repeatably than stamped preforms at ±5–10 µm foil tolerance. Sub-mm pads are where preform pick-place scrap dominates^{[Wen 2008]}.

Pad finish under the solder matters: ENEPIG and high-quality ENIG studies show finish choice shifts voiding and joint reliability in demanding assemblies^{[Gim 2022]}. Ni-Sn sporadic voiding ties to electroplated Ni chemistry versus high-purity Ni^{[Dimitrov 2024]} — relevant when specifying UBM on incoming submounts.

3. Preforms: flexibility and volume economics

Punched or sintered AuSn preforms enable rework, sequential multi-die attach, and bonding to generic metallized pads without vendor-specific predep^{[Syed-Khaja 2019]} ^{[Rautiainen 2018]}. Solid-liquid interdiffusion (SLID) and thermal-compression bonding at 250–300°C under pressure can produce dense joints when oxides are reduced and alignment is tight^{[Rautiainen 2018]}.

Economics favor preforms when pad area is large enough, monthly volume amortizes tooling, and an existing flip-chip or compression line is qualified. Below ~15k modules/month on sub-mm pads, preform MOQ and placement yield often lose to pre-deposited submount cost.

4. Void formation: why predep wins spec

Large voids in flip-chip solder come from hydrogen evolution, flux residues, and entrapment during rapid heating^{[Ramos 2025]} ^{[Lentz 2023]}. Preforms handled in ambient air absorb moisture; pre-deposited solder on sealed ceramics reflows with less outgassing at the pad edge. PCB pad-contamination studies show organics trapped at interfaces drive localized voids — the same lesson applies to gold pad cleanliness before AuSn wetting^{[Eckel 2001]}.

Kirkendall porosity in Cu-Sn systems illustrates asymmetric diffusion risk when Cu pillars or thick Cu UBM are present^{[Tatarchuk 2024]} ^{[Tatarchuk 2025]} ^{[Wang 2024]}. Laser submounts on AlN/SiC with Ti/Pt/Au reduce Cu dissolution versus Cu-pillar flip-chip, but repeated reflow still grows IMC and can reopen voids^{[Nie 2009]}.

FerraLink production guidance aligns with our void inspection article: target < 2% area for precision emitters; correlate void maps to T_j before release.

5. Reliability: thermal cycling and EM

Micro-solder joint fatigue reviews emphasize crack initiation at IMC interfaces and void stress concentrators^{[Li 2024]} ^{[Brinlee 2023]}. Flip-chip studies report microvoids near cathodes can cut electromigration life to ~0.4× void-free bumps at high current density^{[Murayama 2025]} — less common on low-current DFBs but relevant for pump arrays and high-drive RF dies.

Board-level FCCSP thermomechanical data reinforce that void-free statistics tighten life prediction confidence for automotive-class programs^{[Zhang 2025]}. Drop and encapsulation work on SJEM shows underfill shifts stress — compatible with both attach types if void level is matched^{[Radhakrishnan 2017]}.

6. ALN / SiC submount context

Ceramic submounts (AlN ~4–5 ppm/K CTE; SiC ~3–4 ppm/K) set joint shear stress during −40°C to +125°C cycling. Pre-deposited stacks let the vendor tune Ti/Pt/Au adhesion per substrate. AuSn on DPC AlN is the default telecom path; SiC submounts appear where spreading dominates — attach alloy choice is unchanged, pad size and void spec still drive predep.

7. Reflow vs compression profiles

Typical pre-deposited reflow: moderate preheat (150–200°C), ramp to ~280°C liquidus, 10–30 s above liquidus, controlled cool — often with N₂ at peak. Preform compression bonding applies 5–20 MPa during SLID to squeeze entrapped gas; alignment and oxide removal remain critical^{[Rautiainen 2018]}.

Emerging fast attach (intense pulsed light, laser-assisted bonding) may shorten cycle time for large flip-chip; watch IMC and void metrics on small laser pads before adopting^{[Ju 2025]} ^{[Sarr 2025]}.

8. Decision summary table

Criterion	Pre-deposited	Preform
Pad < 1 mm²	Strong yes	High scrap risk
Void ≤ 2%	Strong yes	Only with vacuum + strict IQC
Volume < 15k/mo	Yes	Tooling hard to justify
Rework required	Replace submount	Preform replace
New die sizes often	Artwork only	New punch each

9. How FerraLink applies this

Recommend pre-deposited Au/Sn 80/20 (3–5 µm) on die pads for edge emitters and sub-mm pads.
Supply DPC AlN/SiC with selective predep; bare Au on wire-bond and alignment features.
Point attach qualification to X-ray void limits and reflow DOE on evaluation lots.
Reserve preform discussion for large-pad, high-volume, rework-centric programs only.
