GaN RF Power Module Submount Selection: SiC vs ALN vs Cu-Mo-Cu

Q: Is SiC or ALN better for GaN RF modules?

SiC for high-power GaN (>10 W CW, high current density). ALN for lower-power modules where cost and mature supply chain matter. Both outperform alumina significantly.

Submount material selection for GaN HEMT and MMIC power modules — thermal conductivity, CTE match, current capacity, and when each substrate makes sense.

What the submount must do in GaN RF modules

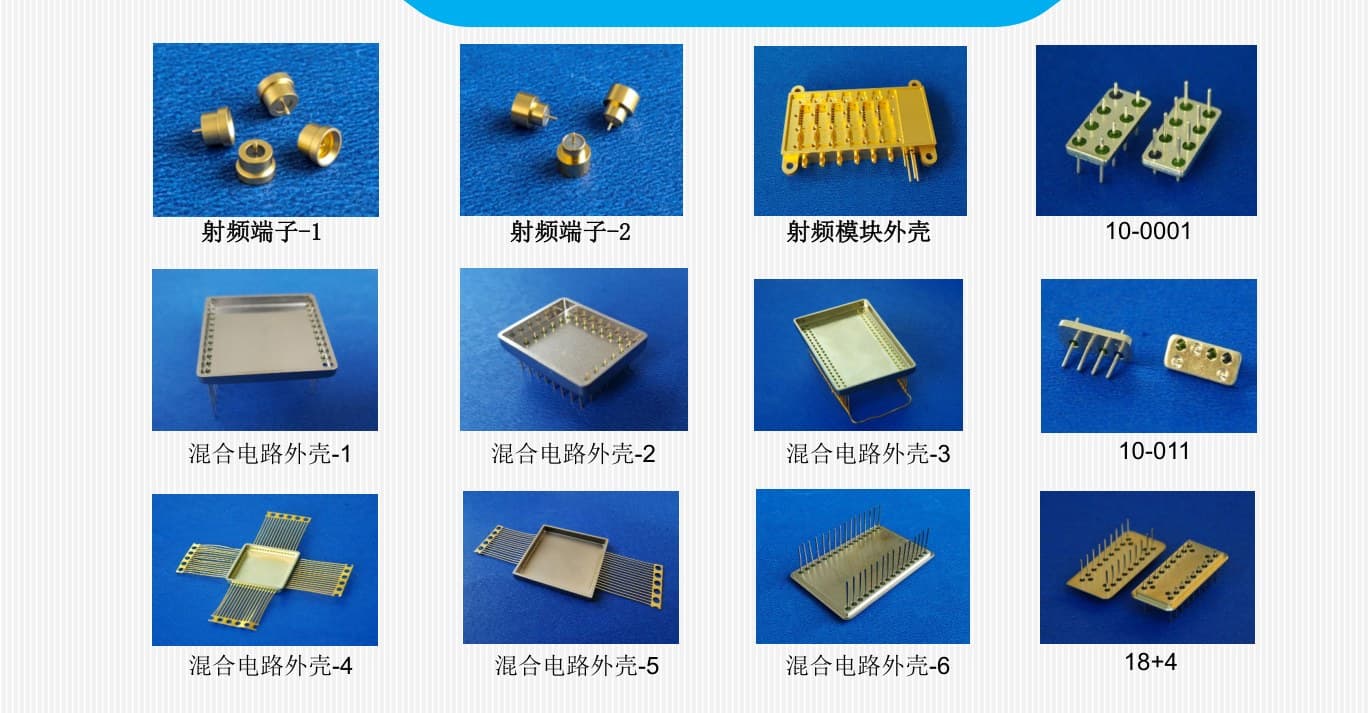

In a GaN RF power module, the submount sits between the GaN die and the package floor or lead frame. It spreads heat from the channel region, provides electrical isolation from the ground plane (for ceramic routes), and offers metallized pads for die attach and wire or ribbon bonding. Failure modes include hot spots under the gate finger region, delamination after temperature cycling, and RF performance drift from elevated channel temperature.

GaN on SiC or GaN on Si devices have a device-level CTE around 5.6 ppm/°C. Submount CTE in the 3.7–4.6 ppm/°C range (SiC, ALN) is workable for small die; large die or aggressive cycling may require stress modeling and underfill choices.

SiC vs ALN vs Cu-Mo-Cu comparison

Criterion	Single-crystal SiC	Polycrystalline ALN	Cu-Mo-Cu laminate
Thermal conductivity	350–400 W/m·K	170–210 W/m·K	170–220 W/m·K (effective through-plane)
CTE	3.7–4.3 ppm/°C	4.3–4.6 ppm/°C	5–7 ppm/°C (grade-dependent)
Electrical	Semi-insulating	Insulating	Conductive — ground path design differs
Die attach	AuSn, solder, epoxy on Ti/Pt/Au	Mature AuSn and solder flows	Often direct solder to Cu face
Best for GaN RF	>10 W CW, high current density, pulsed radar	Low–mid power MMIC, cost-sensitive modules	Highest current, some wideband PA modules
Hermetic ceramic package	Excellent fit	Excellent fit	Requires hybrid assembly
Relative cost	Higher	Lower — mature supply	Highest — laminate + machining
US lead time (typical)	2–4 wk (FerraLink standard)	4–8 wk	8–12+ wk custom laminate

When to choose SiC

Select single-crystal SiC when CW power exceeds roughly 10 W, channel temperature must stay bounded under burst traffic, or thermal density approaches limits where ALN spreading resistance dominates the stack. Radar and EW GaN PAs, high-power 5G massive MIMO linecards, and wideband jammer modules commonly land here.

FerraLink SiC submounts ship with Ti/Pt/Au metallization, standard sizes through 3.5 × 4.55 mm, and material documentation for qualification.

When to choose ALN

ALN is the right ceramic when power is moderate, the module uses established AuSn die attach into a hermetic cavity, and BOM cost matters more than the last 20°C of channel margin. Many 1–5 W GaN MMICs in ceramic packages run successfully on ALN with proper heat sink and flange design.

See ALN submount specifications including AuSn-predeposited options for fluxless attach.

When SiC margin is exhausted: diamond (pre-release)

If channel temperature still exceeds targets after SiC pad and thickness optimization, CVD diamond heat spreaders (~1,500–2,200 W/m·K in-plane) are the next tier — scoped through FerraLink's pre-release program, not the catalog sample box. See CVD diamond submount guide.

When to choose Cu-Mo-Cu

Cu-Mo-Cu (and related Cu-W or Mo-Cu) laminates trade electrical conductivity and current spreading for a different assembly paradigm: the submount is often part of the ground thermal path, not an isolated ceramic island. They appear in some high-current wideband PAs where through-plane conductivity and CTE tailoring of the laminate stack matter more than dielectric isolation.

Pros: excellent current spreading, tunable CTE via Mo ratio, established in some defense RF houses.
Cons: higher cost, longer lead times, moisture-sensitive assembly if not hermetically sealed, not interchangeable with ceramic submount process lines.

Decision flowchart (simplified)

1. Is the package hermetic ceramic with isolated die pad? → If yes, consider SiC or ALN (not bare Cu-Mo-Cu unless hybrid).

2. Is CW power >10 W or pulsed peak density high? → Prefer SiC.

3. Is the module cost-sensitive and <5 W CW? → ALN is usually sufficient.

4. Is ground current the limiting design constraint? → Evaluate Cu-Mo-Cu with your assembly partner.

5. Did SiC optimization still fail hotspot ΔT? → Scope diamond early access.
